Intel Solid-State Drive 525 Series
Small. Fast. Efficient

Intel Solid-State Drive 525 Series

Intel Product
Intel Solid-State Drive 525 Series
Intel 525 30 GB Internal Solid State Drive - Plug-in Module-OEM
OEM 30GB 525 SERIES SSD MSATA 6GBS 25NM MLC 128BIT ENCRYPTION
#SSDMCEAC030B301
Our Price: $59.00
Intel Corporation 60GB 525 SERIES SSD MSATA 6GBPS
OEM 60GB 525 MSATA 25NM MLC 128BIT ENCRYPTION
#SSDMCEAC060B301
Our Price: $112.00

Click here to jump to more pricing!

Overview:

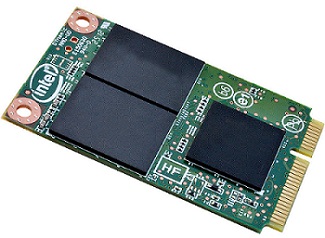

Offering performance and low-power consumption in a package one-eighth the size of a 2.5-inch hard drive, the Intel® Solid-State Drive 525 Series accelerates PC performance with random reads of up to 50,000 input/output operations per second (IOPS)1 and sequential reads of up to 550 megabytes per second (MB/s)2. Couple that with random write performance of up to 80,000 IOPS3 and sequential writes of 520 MB/s to unleash demanding multitasking applications in notebooks, embedded applications, and workstation upgrades. With performance also comes superior data protection, and the Intel® SSD 525 Series features Advanced Encryption Standard (AES) 128-bit capabilities, securing data in the event a PC is lost or stolen. And because SSDs have no moving parts, they reduce risk of data loss while consuming less power for proven reliability.

Intel Evolving Storage Technology

Intel® Solid-State Drives (Intel® SSDs) continue to evolve with the Intel® SSD 500 Family. Available in a wide range of capacities, the Intel® Solid-State Drive 525 Series offers great performance and low power consumption in a package one eighth the size of a 2.5-inch hard drive.

New Level of Performance for Small Form Factor Products

The Intel® SSD 525 Series accelerates PC performance where it matters most. With random read performance up to 50,000 input/output operations per second (IOPS)1 and sequential read performance of up to 550 megabytes per second (MB/s)2, your PC will blaze through the most demanding applications and will handle intense multi-tasking needs. Couple that read performance with random writes up to 80,000 IOPS3 and sequential writes of 520 MB/s2 to unleash your applications. With the Intel® SSD 525 Series, Intel continues to deliver solutions designed to satisfy the most demanding usage models in notebooks, embedded applications, and workstation upgrades. Beyond notebooks, the Intel® SSD 525 Series brings enhanced performance to automotive, signage, embedded video, and retail solutions.

Superior Data Protection Features

The new Intel® SSD 525 Series comes with Advanced Encryption Standard (AES) 128 bit encryption capabilities. In the event of theft or loss of your computer, your data is protected by an advanced encryption technology.

Proven Reliability with Lower Operating Costs

With no moving parts, the Intel® SSD 525 Series reduces your risk of data loss due to shock, vibration, or jarring, all while consuming less power than a traditional hard drive—reducing recurring costs and increasing portability. Use the Intel® SSD 525 Series in notebooks, Ultrabooks™, All-In-One (AIO) Desktops, and embedded designs, knowing that your data is benefitting from advanced security features and world-class performance.

World-Class Reliability – Better by design

Using industry leading, compute-quality Intel® 25nm NAND Flash Memory manufacturing processes the Intel® SSD 525 Series continues to offer even better performance, with increased features, that drastically outperforms traditional hard disk drive drives by an even greater margin.

Technical Specifications:

Intel Solid-State Drive 525 Series
Technical Specifications1
Model Name Intel® Solid-State Drive 525 Series
Capacity 30GB, 60GB, 90GB, 120GB, 180GB, 240GB
NAND Flash Memory 25nm Intel® NAND Flash Memory Multi-Level Cell (MLC)
Bandwidth2
  • Sustained Sequential Reads up to: 550 MB/s
  • Sustained Sequential Writes up to: 520 MB/s
Random I/O Operations per Second (4KB IOPS)3
  • Reads up to: 50,000 IOPS
  • Writes up to: 80,000 IOPS
Interface SATA 6Gb/s, compatible with SATA 3Gb/s
Form Factor, Height and Weight
  • Form Factor: MSATA
  • Height / Weight: 3.7mm/up to 10 grams
Life Expectancy 1.2 million hours Mean Time Between Failures (MTBF)
Power Consumption Active: 350 mW Typical4; Idle: 275 mW Typical5
Lifetime Endurance3 Up to 450TB Written
Usage4 24/7 operation
Power Consumption Read: 1.3 W Typical Write: 5.0 W Typical
Idle: 650 mW Typical
Operating Temperature 0° C to 70° C
RoHS Compliance Meets the requirements of European Union (EU) RoHS Compliance Directives
Software Tools Intel® Solid-State Drive Toolbox with Intel® SSD Optimizer at www.intel.com/go/ssdtoolbox
Intel® Data Migration Software at www.intel.com/go/ssdinstallation
  1. Based on the Intel® Solid-State Drive 525 Series Product Specification.
  2. Performance varies by capacity and is measured using Iometer* with Queue Depth 32.
  3. Performance measured using Iometer with Queue Depth 32. Measurements are performed on 8GB of logical block address (LBA) range on a full SSD.
  4. Active power measured during execution of MobileMark* 2007 Workload with SATA Link Power Management (LPM) enabled.
  5. Idle power defined as SSD at idle with SATA Link Power Management (LPM) enabled.

Documentation:

Download the Intel Solid-State Drive 525 Series (PDF).
